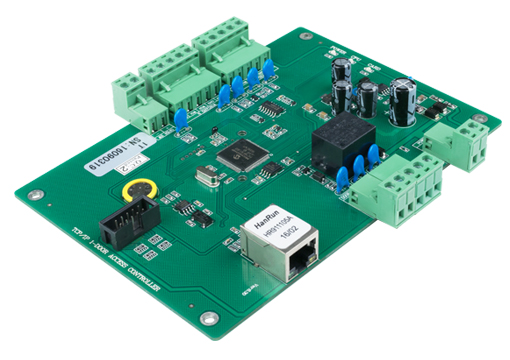

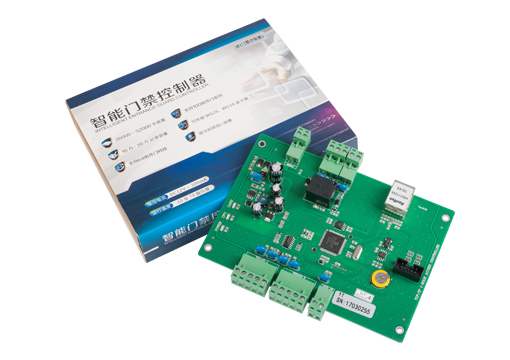

MC-5812T One Door Access Control Board (TCP/IP Communication)

One-way access control board MC-5812T adopts TCP/IP communication mode to truly realize networked data management, can manage 1 door, and supports 26,000 user data, 100,000 event record storage, and provides 1 set of 7A door lock relay output, all models of the access control board developed and produced by FCARD can be mixed and networked regardless of the communication method, and managed through a set of software to realize the real one card pass management application of one card and one library.

The MC-5800 series access control board is a new generation of intelligent network access control products. It is developed with a super network processor combined with a large amount of memory to realize true networked data exchange. Data high-speed computing and super user data management MC-5800 series access control board not only has common access control functions, it also provides some practical functions that other similar products on the market do not have or rarely have. For specific functions, please refer to the product "System Functions".

Alarm extended board:

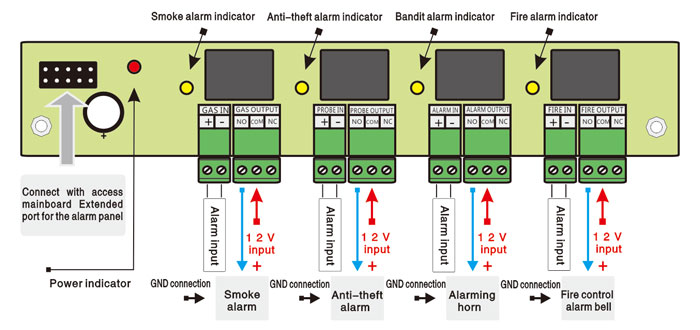

The alarm extended board is mainly used to cooperate with an access control board for alarm linkage: it can be connected to the fire alarm input and output, the police input and output, the poison gas alarm input and output, and the anti-theft alarm input and output.

MC-5800B Access Control Linkage Board

System Software:

Access control board MC-5800 series adopt FCRD3500 or above one card pass management system as system software. The system software supports SQL and ACCESS databases, and supports WIN XP, WIN 2003, WIN 7, WIN10 and other system platforms.

FCARD3500 one card pass management system adopts nine modular structure design: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module, conference sign-in module, consumption management module equals one.

MC-5800 series is mainly used for access control board fire alarm input and output, bandit alarm input and output,gas alarm input and output , burglar alarm input and output expansion. Support operating voltage DC12V, working current 200mA.

Software Photoes:

Add Users

FCARD3500A Ver6.40 version provides: OEM packaging tool, IC Password Edit password sector edit, encryption and decryption tools, device search and test tools, visitor management system, three part control system and ACCESS-SQL database conversion tool etc free tools.Through the SQL database, it can be combined with FCARD5000T POS system,FCARD6000 POS system, parking lot system, which can realize: access control, time attendance, guard tour, elevator, conference sign-in, POS, water control, electric control, parking lot charge, vehicle guidance and integration, to achieve one card pass system,one database management.

Wiring Connection Diagram:

Product Features:

One-way access control board MC-5812T is an intelligent access control board developed and produced by FCARD. It realizes true networked data management and adds new functions such as line abnormality detection and prompt, input power temperature monitoring, and intelligent clock error self-correction every day.

System Functions:

MC-5800 series support (Conventional Function)：Offline Operation, Reading Card Unlocking, Passwords Unlocking, Reading Card+Passwords Access, Period Reading Card+Passwords Unlocking, Manual Input Card Number + Passwords Unlocking, First Card Unlocking, Normal Card Unlocking, Remote Unlocking, Remote Locking, Unlocking at definite time, Priod Normally Open, Real Time Supervision, Abnormally Supervision, E-map, Duress Alarm, Fire Alarm Linkage, Robber Alarm, Illegal Break In Alarm, Illegal Card Alarm, Missing card Management, Black list Card Alarm, Door open time out Alarm/Prompt, Anti-passback And Anti-tail, Bulk Data Uploading, Small Group Data Uploading, Dual Door Interlocking, Multi-Door Interlocking, Multi-Card Unlocking, Keypad Programming, Emergency Locking, Time Attendence, 64 Groups Time zone, Holiday and etc.

MC-5800 series support Professional function：Card return, record restoration, anti-detection lock, card reading verification, full card opening, full card opening + automatic registration, main board buzzer switch, clock self-repair, internal and external authentication opening, 3+1 authentication opening the door, number of people inside the door Inquiry, telephone connection notification after alarm, the number of days the device has been running, remote hardware program upgrade, etc.

MC-5800 series support New function：except the function above, we also add MC-5800series with some new functions that other suppliers do not support：Abnormal detection of the card reader circuit and voice prompts, system temperature detection, Power input stability dection, Trial period, online patrol management, voice prompts if the card close to expiration date, daily intelligent self correction of time error, Exit Swith available during valid time zone, remote phone taking when swiping card, Anti theft alarm host function, time interval setting of twice swiping card, Door magnetic alarm time management, encrypted communication data, swiping card times setting, capacity expension, WEIGEND keyboard issue card and etc.

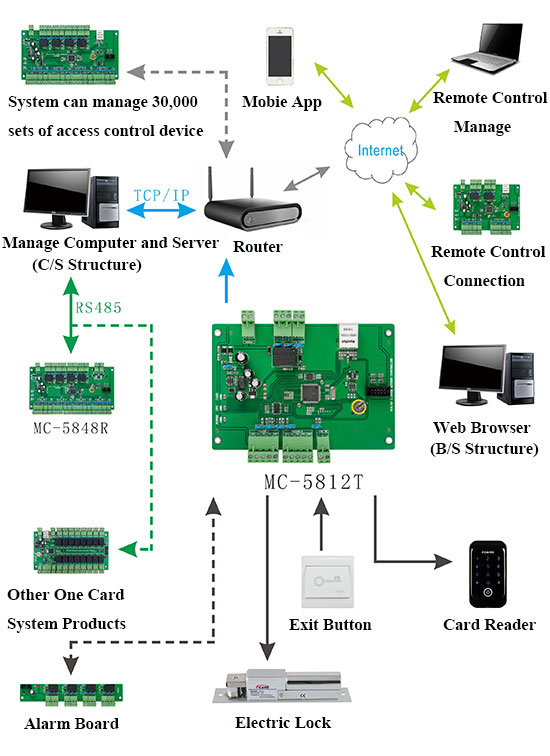

All of the above models can use FCARD3500 or newer version of the one card pass management system software. The software system supports ACCESS and SQL database, supports local connection communication, and can also remotely communicate with the Internet.

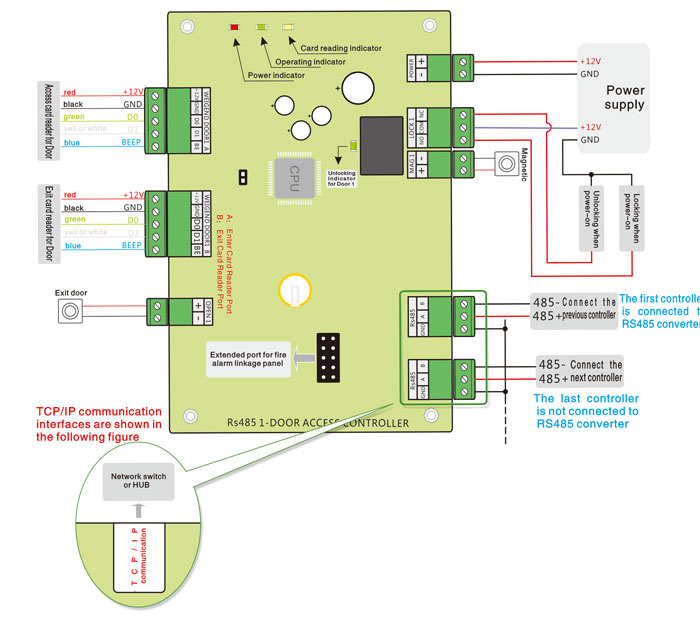

Wiring Diagram:

Remarks of access control board:

1. Power-on lock: the correct wiring of the electric bolt lock or magnetic lock, the positive electrode of the electric lock is connected to the NC of the controller output terminal, the negative electrode of the electric lock is connected to the GND of the power supply, and the COM of the controller is connected to the +12V of the power supply.

2. Power-on unlock lock: the correct wiring of the electric lock or electric lock, the positive electrode of the electric lock is connected to the output terminal NO of the controller, the negative electrode of the electric lock is connected to the GND of the power supply, and the COM of the controller is connected to the + of the power supply 12V.

Wiring requirements:

1. AC220V AC power cord: 3*1.0 square millimeter wire is recommended to prevent leakage, and the ground wire of the power cord is recommended to be grounded.

2. Electric lock wire: 2*1.0 square millimeter wire must be used, and the maximum length of the line should not exceed 50 meters.

3. RS485 communication line: It is recommended to use 3*0.5 square millimeter wire, and it is recommended to use twisted pair. The maximum length of the line should not exceed 1200 meters. If it exceeds this distance, please add an RS485 repeater to extend the communication distance.

4. TCP/IP communication line: Please use standard network cable when communicating with one door access controller, and the maximum length of the line should not exceed 100 meters.

5. Card reader line: It is recommended to use 8*0.5 square millimeter wire, and the maximum line should not exceed 80 meters.

6. Door sensor or exit switch wire: 2*0.5 square millimeter wire is recommended, and the maximum length of the wire should not exceed 100 meters.

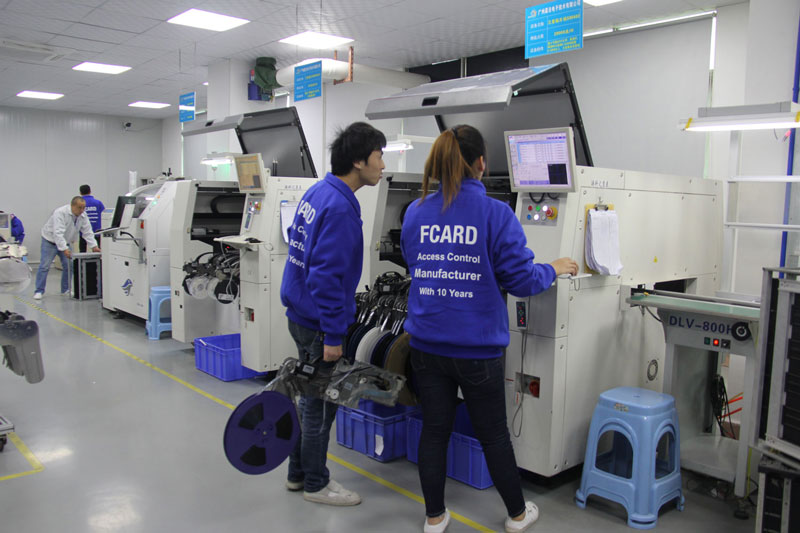

Factory Photoes:

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
