Wiring Diagram of MC-5824 Link Fire Alarm

2016-11-09 15:00

Details of the problem:

Hello, i have bought a MC-5824 access control board has fire alarm function, however, i don’t know how to setting, Can you provide me a wiring diagram or user manual? Thanks.

Expert answer:

Thank you for your purchased. The wiring diagram shown as below:

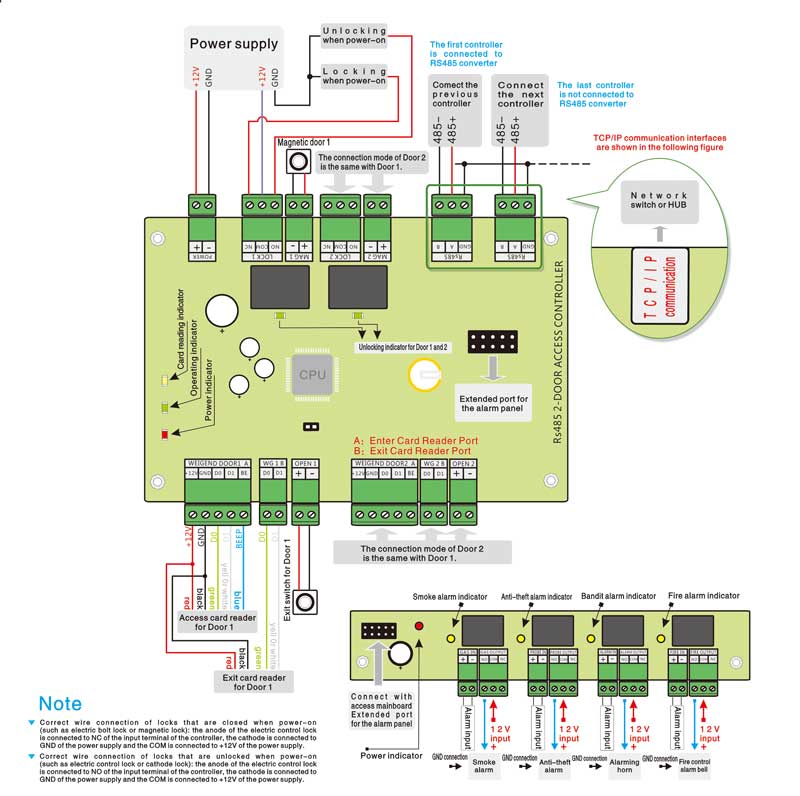

Access control Board Wiring Diagram

Can solve( 2 ) Can not be solved( 0 )
