MC-5812R Wiring Diagram

2016-12-23 10:10

Details of the problem:

Hello, my colleague bought MC-5812R series access controller yesterday. We want to know the trace of it. It is hard to install? Can you provide me the wiring diagram for a reference.

Expert answer:

Thank you for your purchasing, here is the wiring diagram for your reference.

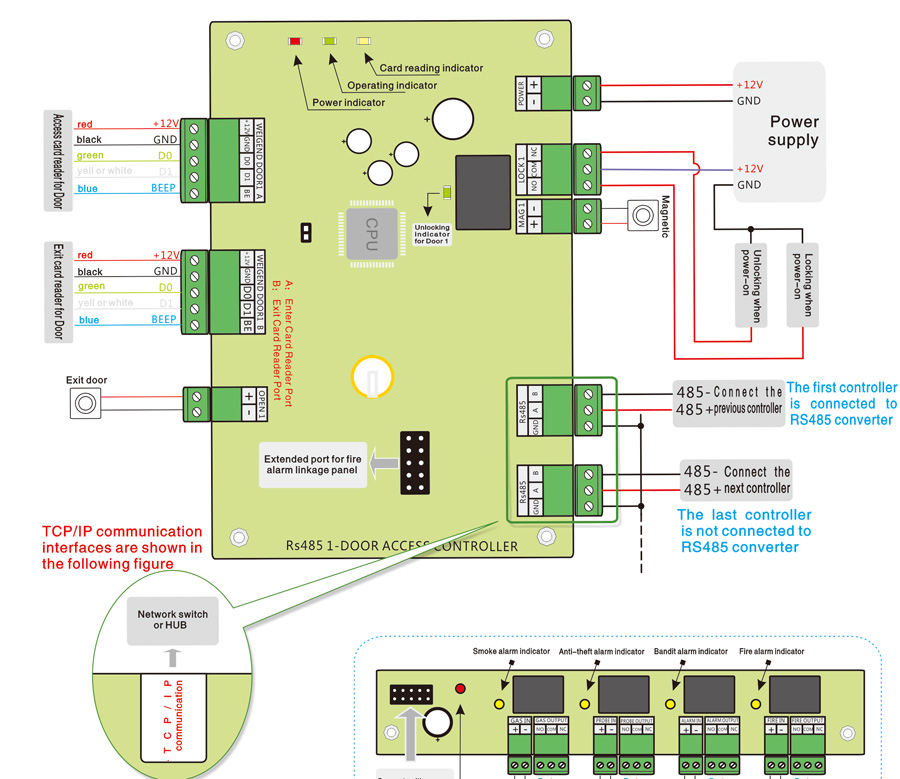

MC-5812R Wiring Diagram

Can solve( 0 ) Can not be solved( 0 )
